Arduino Tilt Game Console

Published: April 23, 2026

This project turns an Arduino Nano, a tiny OLED screen, a motion sensor, one button, and a buzzer into a small tilt-controlled game console.

The player tilts the breadboard/controller to move a ball on the screen. A single button is used to move through the menu, select a game, restart, or return to the menu. The final version includes two playable games: Tilt Maze and Coin Collector.

---

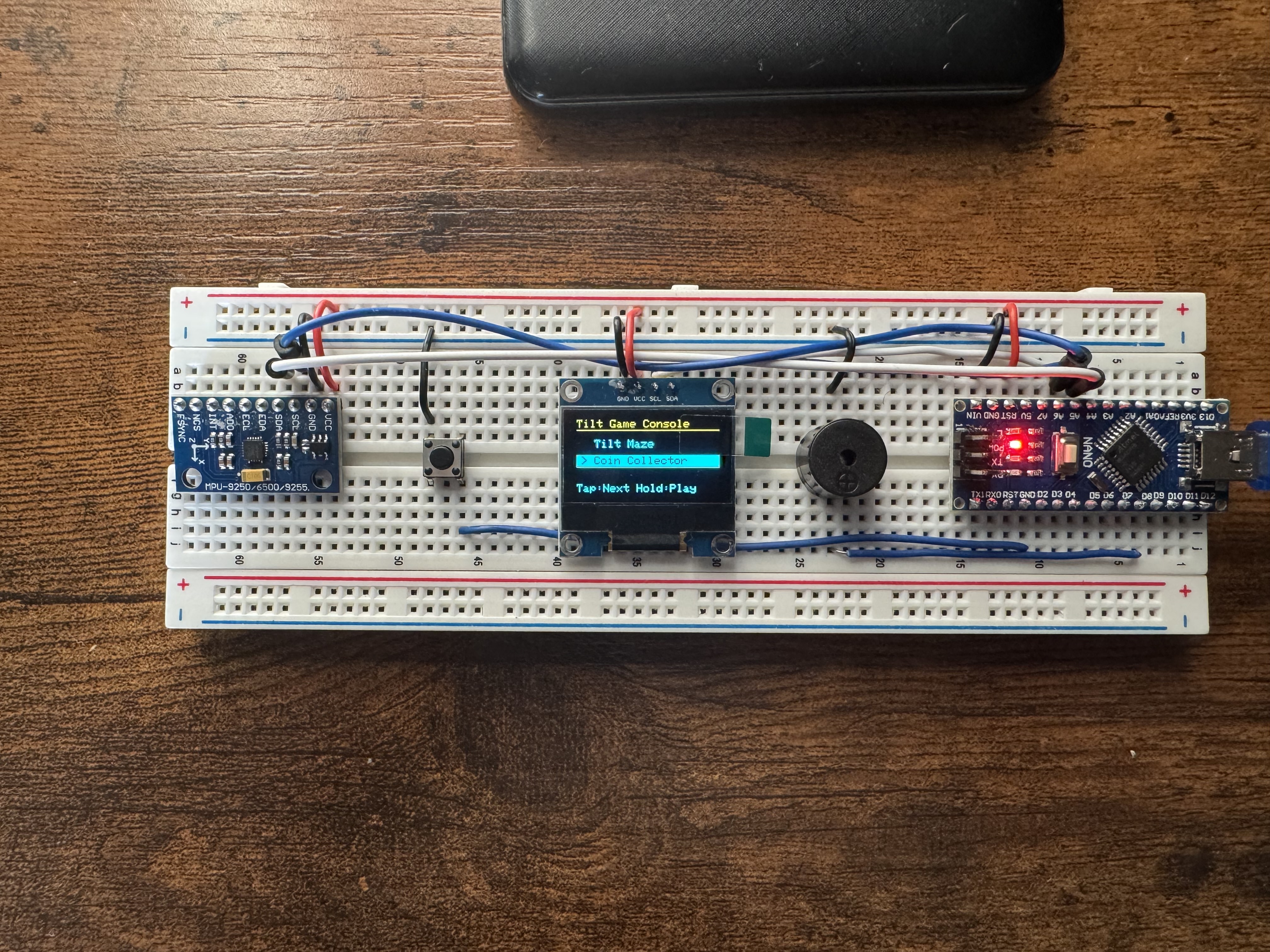

📸 Preview

---

⚙️ How It Works

• The Arduino Nano controls the whole project.
• The OLED screen displays the startup screen, menu, games, score, timer, and game-over/win screens.
• The motion sensor detects how the controller is tilted.
• The Arduino reads the raw accelerometer values from the motion sensor.
• At startup, the console asks the user to hold the device still so it can calibrate a neutral position.
• After calibration, the Arduino uses the tilt readings to move the ball on the OLED screen.
• A deadzone is used so tiny movements do not make the ball drift too much.
• The push button is used for menu control and restarting games.
• The buzzer plays simple sound effects for menu movement, selection, coin collection, winning, and game over.
• The project includes two games:
• Tilt Maze, where the player guides the ball through a maze into the target box.
• Coin Collector, where the player collects as many coins as possible within 20 seconds.
• The high score for Coin Collector is saved using the Arduino's EEPROM memory.

---

🧰 Components Used

Component	What It Does
Arduino Nano	Main microcontroller that runs the game
0.96-inch I2C OLED display	Displays the menu, games, score, and game screens
MPU-6500-family motion sensor module	Detects tilt/movement for controlling the ball
Passive buzzer	Plays simple sound effects
Push button	Used to navigate the menu, select games, restart, and return to menu
Breadboard	Holds the circuit together without soldering
Jumper wires	Connects all the components
USB cable	Powers the Arduino and uploads the code

---

🔌 Wiring Instructions

OLED Display Wiring

OLED Pin	Arduino Nano Pin
GND	GND
VCC	5V
SDA	A4
SCL	A5

Motion Sensor Wiring

Motion Sensor Pin	Arduino Nano Pin
GND	GND
VCC	5V
SDA	A4
SCL	A5

The OLED and motion sensor both use I2C, so they share the same SDA and SCL pins.

Push Button Wiring

Button Connection	Arduino Nano Pin
One leg	D2
Other leg	GND

The code uses INPUT_PULLUP, so the button works like this:

Button State	Reading
Not pressed	HIGH
Pressed	LOW

Passive Buzzer Wiring

Buzzer Pin	Arduino Nano Pin
Positive	D9
Negative	GND

---

🚀 Uploading the Code

Arduino IDE Users

1. Connect the Arduino Nano to your laptop using a USB cable.
2. Open the Arduino IDE.
3. Install the required libraries listed below.
4. Copy and paste the project code linked below.
5. Select the correct board:
   Tools > Board > Arduino Nano
6. Select the correct processor option if needed.
7. Select the correct port:
   Tools > Port
8. Click Upload.
9. If the upload fails, try the other Nano processor option, such as the old bootloader option.

PlatformIO Users

1. Download or clone the project folder from GitHub.
2. Open the project folder in VS Code.
3. Connect the Arduino Nano.
4. Build the project.
5. Upload the project.
6. Open Serial Monitor if you want to view debugging messages.

The project was configured with:

monitor_speed = 115200

---

📦 Installing Libraries

For Arduino IDE users, install these libraries before uploading the code:

Library	Purpose
Adafruit SSD1306	Controls the OLED display
Adafruit GFX Library	Provides graphics functions for drawing on the OLED

To install them in the Arduino IDE:

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for Adafruit SSD1306 and install it.
4. Search for Adafruit GFX Library and install it.

The final code does not use the Adafruit MPU6050 library. The motion sensor is handled using direct register reads for an MPU-6500-family device.

---

⚙️ Optional: PlatformIO Setup

This project was developed using PlatformIO in VS Code. The full project files are available on GitHub here: Arduino Tilt Game Console GitHub repository

The main files are:

File	Purpose
src/main.cpp	Main project code
platformio.ini	PlatformIO board, library, upload, and monitor settings
README.md	Project documentation
.gitignore	Ignores generated files
.vscode/	VS Code/PlatformIO editor settings

The PlatformIO dependencies used are:

lib_deps =
  adafruit/Adafruit SSD1306
  adafruit/Adafruit GFX Library

The configured board environment used an Arduino Nano with the Arduino framework.

---

📝 Arduino Code

Language: C++

#include <Arduino.h>
#include <EEPROM.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

namespace {

// Display, input, and sensor configuration for the whole console.
constexpr uint8_t SCREEN_WIDTH = 128;
constexpr uint8_t SCREEN_HEIGHT = 64;
constexpr uint8_t OLED_RESET = 255;
constexpr uint8_t OLED_ADDRESS = 0x3C;

constexpr uint8_t BUTTON_PIN = 2;
constexpr uint8_t BUZZER_PIN = 9;

constexpr uint8_t IMU_ADDR_PRIMARY = 0x68;
constexpr uint8_t IMU_ADDR_SECONDARY = 0x69;
constexpr uint8_t REG_ACCEL_CONFIG = 0x1C;
constexpr uint8_t REG_ACCEL_XOUT_H = 0x3B;
constexpr uint8_t REG_PWR_MGMT_1 = 0x6B;
constexpr uint8_t REG_WHO_AM_I = 0x75;

constexpr int BALL_RADIUS = 2;
constexpr float BALL_START_X = SCREEN_WIDTH / 2.0f;
constexpr float BALL_START_Y = SCREEN_HEIGHT / 2.0f;
constexpr float TILT_DEADZONE = 0.04f;
constexpr float TILT_SPEED = 4.8f;
constexpr float ACCEL_LSB_PER_G = 16384.0f;
constexpr float SCREEN_X_SIGN = -1.0f;
constexpr float SCREEN_Y_SIGN = -1.0f;
constexpr uint8_t CALIBRATION_SAMPLES = 40;
constexpr uint8_t EEPROM_MAGIC = 0x42;
constexpr int EEPROM_MAGIC_ADDR = 0;
constexpr int EEPROM_HIGHSCORE_ADDR = 1;

constexpr unsigned long BUTTON_DEBOUNCE_MS = 25;
constexpr unsigned long LONG_PRESS_MS = 700;
constexpr unsigned long FRAME_DELAY_MS = 20;
constexpr unsigned long DEBUG_PRINT_MS = 200;
constexpr unsigned long GAME_OVER_HOLD_MS = 350;
constexpr int16_t PLAYFIELD_TOP = 11;
constexpr int16_t COIN_COLLECTOR_PLAYFIELD_TOP = 19;
constexpr int16_t PLAYFIELD_LEFT = 0;
constexpr int16_t PLAYFIELD_RIGHT = SCREEN_WIDTH - 1;
constexpr int16_t PLAYFIELD_BOTTOM = SCREEN_HEIGHT - 1;
constexpr int16_t TILT_MAZE_FOOTER_TOP = 56;
constexpr unsigned long COIN_COLLECTOR_TIME_LIMIT_MS = 20000;
constexpr uint8_t COIN_COLLECTOR_BASE_TARGET = 8;
constexpr int COIN_RADIUS = 2;

// High-level app states used by the main menu and both games.
enum class AppState {
  Menu,
  Playing,
  GameOver,
};

// The single physical button is translated into these events.
enum class ButtonEvent {
  None,
  ShortPress,
  LongPress,
};

// A game update can continue, end in a win, or end in a loss.
enum class PlayResult {
  Ongoing,
  Won,
  Lost,
};

// Debounce and hold timing state for the push button.
struct ButtonTracker {
  bool stableState = HIGH;
  bool previousRawState = HIGH;
  unsigned long lastDebounceMs = 0;
  unsigned long pressStartedMs = 0;
};

// Small rectangle helper used for maze walls and goal zones.
struct Rect {
  int16_t x;
  int16_t y;
  int16_t w;
  int16_t h;
};

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// Final public menu only contains the two implemented games.
constexpr size_t GAME_COUNT = 2;
const char *const GAME_NAMES[GAME_COUNT] = {
    "Tilt Maze",
    "Coin Collector",
};
constexpr size_t TILT_MAZE_INDEX = 0;
constexpr size_t COIN_COLLECTOR_INDEX = 1;

constexpr Rect TILT_MAZE_WALLS[] = {
    // Slightly tighter layout for a bit more challenge while staying playable.
    {22, 20, 5, 24},
    {22, 44, 26, 5},
    {48, 20, 5, 16},
    {48, 20, 24, 5},
    {72, 20, 5, 24},
    {72, 44, 24, 5},
    {96, 28, 5, 21},
    {34, 30, 14, 4},
    {60, 36, 12, 4},
    {84, 30, 12, 4},
};
constexpr Rect TILT_MAZE_GOAL = {108, 28, 14, 14};
constexpr float TILT_MAZE_START_X = 7.0f;
constexpr float TILT_MAZE_START_Y = 22.0f;

// Shared runtime state for movement, calibration, scores, and active screen.
float ballX = BALL_START_X;
float ballY = BALL_START_Y;
uint8_t imuAddress = 0;
uint8_t imuWhoAmI = 0;
float neutralAccelXg = 0.0f;
float neutralAccelYg = 0.0f;
float neutralAccelZg = 0.0f;
unsigned long lastSerialPrintMs = 0;
unsigned long gameOverAtMs = 0;
bool lastRoundWon = false;
uint8_t highScore = 0;
uint8_t currentScore = 0;
uint8_t currentTarget = COIN_COLLECTOR_BASE_TARGET;
unsigned long roundEndsAtMs = 0;
float coinX = 0.0f;
float coinY = 0.0f;

AppState appState = AppState::Menu;
ButtonTracker buttonTracker;
size_t selectedGameIndex = 0;
size_t activeGameIndex = 0;

// ---------------------------------------------------------------------------
// Sound helpers
// ---------------------------------------------------------------------------

// Simple buzzer helper used by the menu and both games.
void playTone(uint16_t frequency, uint16_t durationMs) {
  tone(BUZZER_PIN, frequency, durationMs);
}

void playStartupBeep() {
  playTone(1200, 120);
  delay(150);
  playTone(1600, 120);
  delay(150);
  noTone(BUZZER_PIN);
}

void playMenuMoveBeep() {
  playTone(1400, 50);
}

void playSelectBeep() {
  playTone(1800, 80);
}

void playGameOverBeep() {
  playTone(700, 120);
  delay(140);
  playTone(500, 170);
}

void playCoinBeep() {
  playTone(1700, 45);
  delay(55);
  playTone(2200, 55);
}

// ---------------------------------------------------------------------------
// Setup and persistence helpers
// ---------------------------------------------------------------------------

void showFatalError(const __FlashStringHelper *message) {
  Serial.println(message);

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Startup failed"));
  display.println();
  display.println(message);
  display.display();

  while (true) {
    delay(100);
  }
}

void initButtonAndBuzzer() {
  pinMode(BUTTON_PIN, INPUT_PULLUP);
  pinMode(BUZZER_PIN, OUTPUT);
  noTone(BUZZER_PIN);
}

// Store only one byte for the high score to keep EEPROM usage tiny.
void loadHighScore() {
  if (EEPROM.read(EEPROM_MAGIC_ADDR) != EEPROM_MAGIC) {
    EEPROM.update(EEPROM_MAGIC_ADDR, EEPROM_MAGIC);
    EEPROM.update(EEPROM_HIGHSCORE_ADDR, 0);
  }

  highScore = EEPROM.read(EEPROM_HIGHSCORE_ADDR);
}

void saveHighScore(uint8_t score) {
  highScore = score;
  EEPROM.update(EEPROM_MAGIC_ADDR, EEPROM_MAGIC);
  EEPROM.update(EEPROM_HIGHSCORE_ADDR, highScore);
}

// Draw a simple splash title while the rest of the hardware is being prepared.
void initDisplay() {
  if (!display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDRESS)) {
    while (true) {
      delay(100);
    }
  }

  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(2);
  display.setCursor(10, 12);
  display.println(F("Tilt Game"));
  display.setCursor(22, 34);
  display.println(F("Console"));
  display.display();
}

// ---------------------------------------------------------------------------
// IMU / I2C helpers
// ---------------------------------------------------------------------------

// The OLED and IMU share the same I2C bus, so startup begins by probing addresses.
bool i2cDevicePresent(uint8_t address) {
  Wire.beginTransmission(address);
  return Wire.endTransmission() == 0;
}

bool writeRegister(uint8_t deviceAddress, uint8_t reg, uint8_t value) {
  Wire.beginTransmission(deviceAddress);
  Wire.write(reg);
  Wire.write(value);
  return Wire.endTransmission() == 0;
}

bool readRegisters(uint8_t deviceAddress, uint8_t startReg, uint8_t *buffer, size_t length) {
  Wire.beginTransmission(deviceAddress);
  Wire.write(startReg);
  if (Wire.endTransmission(false) != 0) {
    return false;
  }

  const size_t received = Wire.requestFrom(static_cast<int>(deviceAddress), static_cast<int>(length));
  if (received != length) {
    return false;
  }

  for (size_t i = 0; i < length; ++i) {
    buffer[i] = Wire.read();
  }

  return true;
}

int16_t joinBytes(uint8_t highByte, uint8_t lowByte) {
  return static_cast<int16_t>((static_cast<uint16_t>(highByte) << 8) | lowByte);
}

void printI2cScan() {
  Serial.println(F("Scanning I2C bus..."));
  for (uint8_t address = 1; address < 127; ++address) {
    if (i2cDevicePresent(address)) {
      Serial.print(F("Found I2C device at 0x"));
      if (address < 16) {
        Serial.print('0');
      }
      Serial.println(address, HEX);
    }
  }
}

// This project targets an MPU-6500-family board, but we still detect the chip
// at runtime because breakout boards in this family often vary by exact sensor.
bool detectImu() {
  const uint8_t candidateAddresses[] = {IMU_ADDR_PRIMARY, IMU_ADDR_SECONDARY};

  for (uint8_t address : candidateAddresses) {
    if (!i2cDevicePresent(address)) {
      continue;
    }

    uint8_t whoAmI = 0;
    if (readRegisters(address, REG_WHO_AM_I, &whoAmI, 1)) {
      imuAddress = address;
      imuWhoAmI = whoAmI;
      return true;
    }
  }

  return false;
}

void printImuIdentity() {
  Serial.print(F("IMU found at 0x"));
  if (imuAddress < 16) {
    Serial.print('0');
  }
  Serial.print(imuAddress, HEX);
  Serial.print(F(", WHO_AM_I = 0x"));
  if (imuWhoAmI < 16) {
    Serial.print('0');
  }
  Serial.println(imuWhoAmI, HEX);

  if (imuWhoAmI == 0x70) {
    Serial.println(F("Looks like an MPU-6500 family device."));
  } else if (imuWhoAmI == 0x71) {
    Serial.println(F("Looks like an MPU-9250 family device."));
  } else if (imuWhoAmI == 0x73) {
    Serial.println(F("Looks like an MPU-9255-style device."));
  } else {
    Serial.println(F("Unknown WHO_AM_I value, but register reads are working."));
  }
}

void showCalibrationMessage() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Hold console"));
  display.println(F("in neutral"));
  display.println(F("position..."));
  display.display();
}

// Wake the IMU and set the accelerometer to its default +/-2g range.
void initImu() {
  printI2cScan();

  if (!detectImu()) {
    showFatalError(F("IMU not found"));
  }

  printImuIdentity();

  if (!writeRegister(imuAddress, REG_PWR_MGMT_1, 0x00)) {
    showFatalError(F("IMU wake failed"));
  }

  delay(100);

  if (!writeRegister(imuAddress, REG_ACCEL_CONFIG, 0x00)) {
    showFatalError(F("Accel config failed"));
  }
}

// Read the latest accelerometer sample directly from the IMU register map.
bool readAccelRaw(int16_t &rawX, int16_t &rawY, int16_t &rawZ) {
  uint8_t buffer[6];
  if (!readRegisters(imuAddress, REG_ACCEL_XOUT_H, buffer, sizeof(buffer))) {
    return false;
  }

  rawX = joinBytes(buffer[0], buffer[1]);
  rawY = joinBytes(buffer[2], buffer[3]);
  rawZ = joinBytes(buffer[4], buffer[5]);
  return true;
}

void showSensorReadError() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Sensor read failed"));
  display.println(F("Check MPU wiring"));
  display.display();
}

// ---------------------------------------------------------------------------
// Shared gameplay state helpers
// ---------------------------------------------------------------------------

// Each game gets its own spawn/reset behavior, but both still use the same ball.
void resetBall() {
  if (activeGameIndex == TILT_MAZE_INDEX) {
    ballX = TILT_MAZE_START_X;
    ballY = TILT_MAZE_START_Y;
    return;
  }

  ballX = BALL_START_X;
  ballY = BALL_START_Y;
}

bool circlesOverlap(float ax, float ay, int ar, float bx, float by, int br) {
  const float dx = ax - bx;
  const float dy = ay - by;
  const float combined = ar + br;
  return (dx * dx + dy * dy) <= (combined * combined);
}

// Coin Collector scales difficulty from the saved best score, but never starts
// below the base target so the game stays meaningful on a fresh EEPROM.
uint8_t targetScoreForNextRound() {
  const uint8_t beatHighScoreTarget = static_cast<uint8_t>(highScore + 1);
  return beatHighScoreTarget > COIN_COLLECTOR_BASE_TARGET ? beatHighScoreTarget : COIN_COLLECTOR_BASE_TARGET;
}

// Pick a coin position away from the player so a new round does not instantly score.
void spawnCoin() {
  const float minX = 10.0f;
  const float maxX = SCREEN_WIDTH - 10.0f;
  const float minY = COIN_COLLECTOR_PLAYFIELD_TOP + 7.0f;
  const float maxY = SCREEN_HEIGHT - 8.0f;

  for (uint8_t attempt = 0; attempt < 40; ++attempt) {
    const float candidateX = random(static_cast<long>(minX), static_cast<long>(maxX));
    const float candidateY = random(static_cast<long>(minY), static_cast<long>(maxY));

    if (!circlesOverlap(ballX, ballY, BALL_RADIUS + 4, candidateX, candidateY, COIN_RADIUS)) {
      coinX = candidateX;
      coinY = candidateY;
      return;
    }
  }

  coinX = SCREEN_WIDTH - 16.0f;
  coinY = SCREEN_HEIGHT / 2.0f;
}

// Reset per-round state whenever a game starts or restarts.
void prepareGameRound() {
  resetBall();

  if (activeGameIndex == COIN_COLLECTOR_INDEX) {
    currentScore = 0;
    currentTarget = targetScoreForNextRound();
    roundEndsAtMs = millis() + COIN_COLLECTOR_TIME_LIMIT_MS;
    spawnCoin();
  }
}

// Calibrate the player's natural hand position so slight resting tilt does not
// make the ball drift on startup.
void calibrateNeutralTilt() {
  showCalibrationMessage();
  delay(700);

  long sumX = 0;
  long sumY = 0;
  long sumZ = 0;

  for (uint8_t i = 0; i < CALIBRATION_SAMPLES; ++i) {
    int16_t rawX = 0;
    int16_t rawY = 0;
    int16_t rawZ = 0;

    if (!readAccelRaw(rawX, rawY, rawZ)) {
      showFatalError(F("Calibration failed"));
    }

    sumX += rawX;
    sumY += rawY;
    sumZ += rawZ;
    delay(20);
  }

  neutralAccelXg = (sumX / static_cast<float>(CALIBRATION_SAMPLES)) / ACCEL_LSB_PER_G;
  neutralAccelYg = (sumY / static_cast<float>(CALIBRATION_SAMPLES)) / ACCEL_LSB_PER_G;
  neutralAccelZg = (sumZ / static_cast<float>(CALIBRATION_SAMPLES)) / ACCEL_LSB_PER_G;

  resetBall();

  Serial.print(F("Neutral X(g): "));
  Serial.print(neutralAccelXg, 2);
  Serial.print(F("  Y(g): "));
  Serial.print(neutralAccelYg, 2);
  Serial.print(F("  Z(g): "));
  Serial.println(neutralAccelZg, 2);
}

float applyDeadzone(float value) {
  if (fabs(value) < TILT_DEADZONE) {
    return 0.0f;
  }
  return value;
}

// ---------------------------------------------------------------------------
// Input handling
// ---------------------------------------------------------------------------

// Convert raw button transitions into short-press and long-press events.
ButtonEvent readButtonEvent() {
  const bool rawState = digitalRead(BUTTON_PIN);

  if (rawState != buttonTracker.previousRawState) {
    buttonTracker.lastDebounceMs = millis();
    buttonTracker.previousRawState = rawState;
  }

  if ((millis() - buttonTracker.lastDebounceMs) < BUTTON_DEBOUNCE_MS) {
    return ButtonEvent::None;
  }

  if (rawState == buttonTracker.stableState) {
    return ButtonEvent::None;
  }

  buttonTracker.stableState = rawState;

  if (buttonTracker.stableState == LOW) {
    buttonTracker.pressStartedMs = millis();
    return ButtonEvent::None;
  }

  const unsigned long heldMs = millis() - buttonTracker.pressStartedMs;
  if (heldMs >= LONG_PRESS_MS) {
    return ButtonEvent::LongPress;
  }

  return ButtonEvent::ShortPress;
}

// ---------------------------------------------------------------------------
// Collision and game update logic
// ---------------------------------------------------------------------------

// Circle-vs-rectangle collision is used for both maze walls and the maze goal.
bool circleTouchesRect(float cx, float cy, int16_t radius, const Rect &rect) {
  const float closestX = constrain(cx, static_cast<float>(rect.x), static_cast<float>(rect.x + rect.w));
  const float closestY = constrain(cy, static_cast<float>(rect.y), static_cast<float>(rect.y + rect.h));
  const float dx = cx - closestX;
  const float dy = cy - closestY;
  return (dx * dx + dy * dy) <= (radius * radius);
}

bool ballTouchesGoal(float cx, float cy) {
  return circleTouchesRect(cx, cy, BALL_RADIUS, TILT_MAZE_GOAL);
}

bool ballTouchesMazeWall(float cx, float cy) {
  for (const Rect &wall : TILT_MAZE_WALLS) {
    if (circleTouchesRect(cx, cy, BALL_RADIUS, wall)) {
      return true;
    }
  }
  return false;
}

// Shared movement code for both games. The same tilt input drives the player ball,
// but each game interprets collisions and win/loss conditions differently.
PlayResult updateTiltBall() {
  int16_t rawX = 0;
  int16_t rawY = 0;
  int16_t rawZ = 0;

  if (!readAccelRaw(rawX, rawY, rawZ)) {
    showSensorReadError();
    delay(250);
    return PlayResult::Ongoing;
  }

  const float accelXg = rawX / ACCEL_LSB_PER_G;
  const float accelYg = rawY / ACCEL_LSB_PER_G;
  const float accelZg = rawZ / ACCEL_LSB_PER_G;

  const float tiltX = applyDeadzone((accelYg - neutralAccelYg) * SCREEN_X_SIGN);
  const float tiltY = applyDeadzone((accelXg - neutralAccelXg) * SCREEN_Y_SIGN);

  float nextBallX = ballX + tiltX * TILT_SPEED;
  float nextBallY = ballY + tiltY * TILT_SPEED;

  const float minX = (PLAYFIELD_LEFT + 1) + BALL_RADIUS;
  const float maxX = (PLAYFIELD_RIGHT - 1) - BALL_RADIUS;
  const float minY = ((activeGameIndex == COIN_COLLECTOR_INDEX ? COIN_COLLECTOR_PLAYFIELD_TOP : PLAYFIELD_TOP) + 1) + BALL_RADIUS;
  const float maxY = ((activeGameIndex == TILT_MAZE_INDEX ? TILT_MAZE_FOOTER_TOP : PLAYFIELD_BOTTOM) - 1) - BALL_RADIUS;

  const bool hitBoundary = (nextBallX <= minX || nextBallX >= maxX || nextBallY <= minY || nextBallY >= maxY);

  nextBallX = constrain(nextBallX, minX, maxX);
  nextBallY = constrain(nextBallY, minY, maxY);

  if (activeGameIndex == TILT_MAZE_INDEX) {
    // Resolve X and Y separately so the ball can slide along maze walls naturally.
    if (!ballTouchesMazeWall(nextBallX, ballY)) {
      ballX = nextBallX;
    }

    if (!ballTouchesMazeWall(ballX, nextBallY)) {
      ballY = nextBallY;
    }

    if (ballTouchesGoal(ballX, ballY)) {
      return PlayResult::Won;
    }
  } else if (activeGameIndex == COIN_COLLECTOR_INDEX) {
    // Coin Collector is more open: move freely, collect coins, beat the timer.
    ballX = nextBallX;
    ballY = nextBallY;

    if (circlesOverlap(ballX, ballY, BALL_RADIUS, coinX, coinY, COIN_RADIUS + 1)) {
      ++currentScore;
      playCoinBeep();

      if (currentScore > highScore) {
        saveHighScore(currentScore);
      }

      if (currentScore >= currentTarget) {
        return PlayResult::Won;
      }

      spawnCoin();
    }

    if (millis() >= roundEndsAtMs) {
      return PlayResult::Lost;
    }
  } else {
    ballX = nextBallX;
    ballY = nextBallY;

    if (hitBoundary) {
      return PlayResult::Lost;
    }
  }

  if (millis() - lastSerialPrintMs >= DEBUG_PRINT_MS) {
    lastSerialPrintMs = millis();
    Serial.print(F("Accel X(g): "));
    Serial.print(accelXg, 2);
    Serial.print(F("  Y(g): "));
    Serial.print(accelYg, 2);
    Serial.print(F("  Z(g): "));
    Serial.print(accelZg, 2);
    Serial.print(F("  Tilt X: "));
    Serial.print(tiltX, 2);
    Serial.print(F("  Tilt Y: "));
    Serial.print(tiltY, 2);
    Serial.print(F("  Ball X: "));
    Serial.print(ballX, 1);
    Serial.print(F("  Ball Y: "));
    Serial.println(ballY, 1);
  }

  return PlayResult::Ongoing;
}

// ---------------------------------------------------------------------------
// Rendering
// ---------------------------------------------------------------------------

// Draw the menu and highlight the currently selected game.
void drawMenuScreen() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Tilt Game Console"));
  display.drawLine(0, 9, SCREEN_WIDTH - 1, 9, SSD1306_WHITE);

  for (size_t i = 0; i < GAME_COUNT; ++i) {
    const int16_t rowY = 16 + static_cast<int16_t>(i) * 15;

    if (i == selectedGameIndex) {
      display.fillRect(0, rowY - 1, SCREEN_WIDTH, 11, SSD1306_WHITE);
      display.setTextColor(SSD1306_BLACK);
      display.setCursor(4, rowY);
      display.print('>');
      display.print(' ');
      display.print(GAME_NAMES[i]);
      display.setTextColor(SSD1306_WHITE);
    } else {
      display.setCursor(4, rowY);
      display.print(' ');
      display.print(' ');
      display.print(GAME_NAMES[i]);
    }
  }

  display.setCursor(0, 56);
  display.print(F("Tap:Next Hold:Play"));
  display.display();
}

// Draw the active game screen, including HUD and player/coin/maze elements.
void drawPlayingScreen() {
  display.clearDisplay();
  display.drawRect(0, 0, SCREEN_WIDTH, SCREEN_HEIGHT, SSD1306_WHITE);
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);

  if (activeGameIndex == TILT_MAZE_INDEX) {
    // Maze keeps a compact title bar plus a footer marker for the goal.
    display.drawLine(0, 10, SCREEN_WIDTH - 1, 10, SSD1306_WHITE);
    display.setCursor(3, 1);
    display.print(GAME_NAMES[activeGameIndex]);

    for (const Rect &wall : TILT_MAZE_WALLS) {
      display.fillRect(wall.x, wall.y, wall.w, wall.h, SSD1306_WHITE);
    }

    display.drawRect(TILT_MAZE_GOAL.x, TILT_MAZE_GOAL.y, TILT_MAZE_GOAL.w, TILT_MAZE_GOAL.h, SSD1306_WHITE);
    display.drawLine(0, TILT_MAZE_FOOTER_TOP, SCREEN_WIDTH - 1, TILT_MAZE_FOOTER_TOP, SSD1306_WHITE);
    display.setCursor(2, 57);
    display.print(F("Goal"));
  } else if (activeGameIndex == COIN_COLLECTOR_INDEX) {
    // Coin Collector uses a two-line HUD so score, best score, and timer fit cleanly.
    const unsigned long msRemaining = roundEndsAtMs > millis() ? roundEndsAtMs - millis() : 0;
    const uint8_t secondsRemaining = static_cast<uint8_t>(msRemaining / 1000);

    display.setCursor(2, 1);
    display.print(F("Coin Collector"));
    display.drawLine(0, 9, SCREEN_WIDTH - 1, 9, SSD1306_WHITE);

    display.setCursor(2, 11);
    display.print(F("S"));
    display.print(currentScore);
    display.print(F("/"));
    display.print(currentTarget);
    display.setCursor(40, 11);
    display.print(F("H"));
    display.print(highScore);
    display.setCursor(72, 11);
    display.print(F("T"));
    if (secondsRemaining < 10) {
      display.print('0');
    }
    display.print(secondsRemaining);
    display.drawLine(0, COIN_COLLECTOR_PLAYFIELD_TOP, SCREEN_WIDTH - 1, COIN_COLLECTOR_PLAYFIELD_TOP, SSD1306_WHITE);

    display.drawCircle(static_cast<int16_t>(coinX), static_cast<int16_t>(coinY), COIN_RADIUS + 1, SSD1306_WHITE);
    display.fillCircle(static_cast<int16_t>(coinX), static_cast<int16_t>(coinY), COIN_RADIUS, SSD1306_WHITE);
  } else {
    display.drawLine(0, 10, SCREEN_WIDTH - 1, 10, SSD1306_WHITE);
    display.setCursor(3, 1);
    display.print(GAME_NAMES[activeGameIndex]);
  }

  display.fillCircle(static_cast<int16_t>(ballX),
                     static_cast<int16_t>(ballY),
                     BALL_RADIUS,
                     SSD1306_WHITE);

  if (activeGameIndex == COIN_COLLECTOR_INDEX) {
    display.setCursor(0, 56);
    display.print(F("Target"));
    display.print(currentTarget);
    display.print(F(" in 20s"));
  } else if (activeGameIndex != TILT_MAZE_INDEX) {
    display.setCursor(0, 56);
    display.print(F("Placeholder"));
  }
  display.display();
}

// Reuse the same end screen state for wins and losses, but customize the text
// slightly for Coin Collector so running out of time is easier to understand.
void drawGameOverScreen() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(34, 8);
  if (activeGameIndex == COIN_COLLECTOR_INDEX && !lastRoundWon) {
    display.println(F("Time Up"));
  } else {
    display.println(lastRoundWon ? F("You Win!") : F("Game Over"));
  }
  display.drawLine(12, 18, 116, 18, SSD1306_WHITE);
  display.setCursor(12, 24);
  if (activeGameIndex == COIN_COLLECTOR_INDEX) {
    display.print(F("Coin Collector"));
  } else {
    display.print(GAME_NAMES[activeGameIndex]);
  }
  if (activeGameIndex == COIN_COLLECTOR_INDEX) {
    display.setCursor(12, 34);
    display.print(F("Score "));
    display.print(currentScore);
    display.print(F(" High "));
    display.print(highScore);
    display.setCursor(12, 44);
    display.println(F("Tap: Restart"));
    display.setCursor(12, 54);
    display.println(F("Hold: Menu"));
  } else {
    display.setCursor(18, 40);
    display.println(F("Short: Restart"));
    display.setCursor(18, 50);
    display.println(F("Long: Menu"));
  }
  display.display();
}

// ---------------------------------------------------------------------------
// State transitions
// ---------------------------------------------------------------------------

// Start whichever game is currently selected in the menu.
void startSelectedGame() {
  activeGameIndex = selectedGameIndex;
  prepareGameRound();
  appState = AppState::Playing;
  lastSerialPrintMs = 0;
  playSelectBeep();
  Serial.print(F("Starting game: "));
  Serial.println(GAME_NAMES[activeGameIndex]);
}

void restartCurrentGame() {
  prepareGameRound();
  appState = AppState::Playing;
  lastSerialPrintMs = 0;
  playSelectBeep();
  Serial.print(F("Restarting game: "));
  Serial.println(GAME_NAMES[activeGameIndex]);
}

// Return from gameplay to the menu without powering the console down.
void goToMenu() {
  appState = AppState::Menu;
  selectedGameIndex = activeGameIndex;
  playMenuMoveBeep();
  Serial.println(F("Returned to menu"));
}

// Game over includes both losses and successful finishes.
void triggerGameOver(bool won) {
  appState = AppState::GameOver;
  gameOverAtMs = millis();
  lastRoundWon = won;

  if (won) {
    playTone(1400, 100);
    delay(120);
    playTone(1800, 140);
    Serial.println(F("Tilt Maze complete"));
  } else {
    playGameOverBeep();
    Serial.println(F("Placeholder game over triggered by border hit"));
  }
}

// Main menu behavior: tap to cycle, hold to launch.
void updateMenu(ButtonEvent event) {
  if (event == ButtonEvent::ShortPress) {
    selectedGameIndex = (selectedGameIndex + 1) % GAME_COUNT;
    playMenuMoveBeep();
  } else if (event == ButtonEvent::LongPress) {
    startSelectedGame();
  }

  drawMenuScreen();
}

// In-game behavior: tilt updates movement, hold returns to menu.
void updatePlaying(ButtonEvent event) {
  if (event == ButtonEvent::LongPress) {
    goToMenu();
    drawMenuScreen();
    return;
  }

  const PlayResult result = updateTiltBall();
  if (result == PlayResult::Won) {
    triggerGameOver(true);
    drawGameOverScreen();
    return;
  }

  if (result == PlayResult::Lost) {
    triggerGameOver(false);
    drawGameOverScreen();
    return;
  }

  drawPlayingScreen();
}

// End-screen behavior: tap restarts, hold returns to menu.
void updateGameOver(ButtonEvent event) {
  if ((millis() - gameOverAtMs) < GAME_OVER_HOLD_MS) {
    drawGameOverScreen();
    return;
  }

  if (event == ButtonEvent::ShortPress) {
    restartCurrentGame();
    drawPlayingScreen();
    return;
  }

  if (event == ButtonEvent::LongPress) {
    goToMenu();
    drawMenuScreen();
    return;
  }

  drawGameOverScreen();
}

}  // namespace

// Hardware bring-up happens once here, followed by IMU calibration and the menu.
void setup() {
  Serial.begin(115200);
  delay(200);

  // Seed randomness for Coin Collector respawns and bring up shared hardware first.
  Wire.begin();
  Wire.setClock(400000);
  randomSeed(micros());

  initButtonAndBuzzer();
  initDisplay();
  loadHighScore();
  initImu();
  calibrateNeutralTilt();

  playStartupBeep();
  delay(500);

  drawMenuScreen();
  Serial.println(F("Tilt Game Console Phase 3 ready"));
}

// The main loop repeatedly gathers button input, then delegates to the active state.
void loop() {
  // The main loop is intentionally simple: read one button event, then let the
  // current app state decide how to update and redraw the screen.
  const ButtonEvent event = readButtonEvent();

  switch (appState) {
    case AppState::Menu:
      updateMenu(event);
      break;
    case AppState::Playing:
      updatePlaying(event);
      break;
    case AppState::GameOver:
      updateGameOver(event);
      break;
  }

  delay(FRAME_DELAY_MS);
}

For Arduino IDE users, the easiest approach is to copy the code above into your main sketch. The code was originally written in a PlatformIO project, but it still uses the Arduino framework.

---

📝 Notes

• The motion sensor orientation matters. If the sensor is mounted differently, the movement direction may need adjusting in the code.
• The OLED used in this build has a yellow top band and blue lower area. This is a feature of the display, not a code issue.
• The final project includes two games: Tilt Maze and Coin Collector.
• Avoid Holes was removed from the final version to keep the code within the Arduino Nano's memory limits.
• The Coin Collector high score is saved using EEPROM.
• The final code is contained mostly in one file: src/main.cpp.
• Flash memory usage is high, but still within the Arduino Nano's limits.

← Back to Projects
